Dry Bath Incubator

Products
    Lab and Industrial Solutions Lab and Industrial Solutions

Dry Bath Incubator

    (Login To View Price)
0

Features

* Exceptional temperature uniformity and accuracy -- due to advanced temperature control combined with high quality precision engineered block providing excellent thermal contact.

* Wide range of interchangeable aluminium blocks.

* Heat to 105℃, optional external temperature for all applications - tubes, vials and microplates.

* Blocks optional available as accessories for all applications - tubes, vials and microplates.

* Block extraction tool is supplied, allowing blocks to be removed easily.






Share

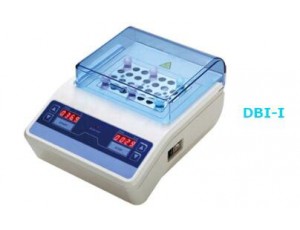

1. Specification for DBI-I Dry Bath Incubator

*Temperature Control Range:               RT+5℃ ~ 105℃

* Stability @ 100℃:                             ≤0.5℃

*Uniformity: within the block @ 37℃:   ±0.2℃

* Heating time (25℃ to 100℃):             ≤20min

*Display Accuracy / Display:                0.1℃ / LED

*Timing Range:                                   1min ~ 99h59min

*Block Quantity:                                  1

* External Size:              250 *190 *130mm

* Package Size:             390*310*250mm

* Net weight:2.5kg,       Gross weight: 4.1kg



2. Specification for DBI-II Dry Bath Incubator

*Temperature Control Range:                   RT+5℃ ~ 105℃

* Stability @ 100℃:                                 ≤0.5℃

*Uniformity: within the block @ 37℃:       ±0.2℃

    Across similar blocks @ 37℃:       ±0.3℃

* Heating time (25℃ to 100℃):                 ≤20min

*Display Accuracy / Display:                    0.1℃ / LED

* Timing Range:                                        1min ~ 99h59min

*Block Quantity:                                      2

* External Size:              365 *210 *150mm

* Package Size:             490*330*280mm

* Net weight: 4.5kg,       Gross weight: 6.2kg



3. Specification for Dry Bath Incubator DBI-III

* Temperature Control Range:                   RT+5℃ ~ 100℃

*Time required for temperature to increase from 20℃ to 100℃: ≤15 min

*Temperature control discrepancy: ≤±0.5℃

*Display discrepancy: ±0.1℃

*Homogeneity of block temperature: ≤± 0.5℃

* Maximum heating power: 100W

* Maximum temp: 100℃

* Time Range:1min~99h59 min

* External Size:              225 *160 *197mm

* Package Size:             330*280*340mm

* Net weight: 3kg,       Gross weight: 6kg



4. Specification for Dry Bath Incubator BDI-IV

*Temperature Control Range: -10℃~100℃

* Timing Range: 1min~99h59min

*Temperature Control Accuracy: ≤ ±0.5℃

*Display Accuracy: 0.1℃

*Heating Time: ≤ 15min (from 20℃ to 100℃)

*Cooling Time:  ≤15min (from 20℃ to -5℃)  If the room temperature is lower 30℃

            ≤ 15min (from 20℃ to -10℃)  If the room temperature is lower25℃

* External Size:              300*220*180 mm

* Package Size:             480*380*330mm

* Net weight:5kg,       Gross weight: 8kg



5. Specification for BDI-V Dry Bath Incubator

*Temperature Control Range:     from 5°C above ambient to 80℃

*Timing Range:                          1min~999min or 1sec~999sec

* Temperature Control Accuracy:  ≤± 0.5℃

*Display Accuracy:                    0.1℃

* Heating Time:                           ≤ 12 min (from 25℃ to 80℃)

* Heating Parts:                          HeatingFilm

* External Size:          150*110*100mm

* Package Size:             260*200*170mm

* Net weight: 0.5kg,       Gross weight: 2kg



6. Specification ofDBI-VI Dry Bath Incubator

*Temperature Control Range: from 5℃ above ambient to 150℃

* Time required for temperature to increase from 40℃  to 150℃ : ≤30 min

*Temperature Control Discrepancy: ≤±0.5℃

*Display Discrepancy: ±0.1℃

*Homogeneity of Block Temperature: ≤± 0.5℃

*Maximum Heated power: 200W

*Dimension: 280*240 *110 mm

*Time Range:1~99h59 min

* External Size:          280*240*110mm

* Package Size:             470*370*330mm

* Net weight: 4.5kg,       Gross weight: 7kg
