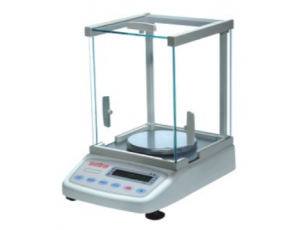

Setra Electrical Balance

The BL Precision Balance is an accurate, stable and robust balance which can be supplied with or without a plastic draft guard for higher accuracy of measurements.
The BL Precision Balances are protected against spray and dust according to the IP54 standard.
With the cable accessory, the BL can be connected to a computer for accurate recording of your data.
A range of User programmable metric and imperial measurement units can be displayed.

Ordering Information → Technical Item ↓	BL-120	BL-200	BL-410	BL-1200	BL-2000	BL-4100
Capacity（g）	120	200	410	1200	2000	4100
Readability（g）	0.001	0.001	0.001	0.01	0.01	0.01
Repeatability（g）	±0.001	±0.001	±0.001	±0.01	±0.01	±0.01
Linearity（g）	±0.002	±0.002	±0.002	±0.02	±0.02	±0.02
Keyboard	Six key	Six key	Six key	Six key	Six key	Six key
Pan Size	Φ120mm	Φ120mm	Φ120mm	Φ158mm	Φ158mm	Φ158mm
Draft shield	Standard	Standard	Standard	N/A	N/A	N/A
Security Lock Kit	Option	Option	Option	Option	Option	Option
*Size WHD*（in）	75.7511	75.7511	75.7511	72.511	72.511	72.511
Interface	Bidirectional RS-232,（standard on all models）
Display	0.57″LED（all models）
Power	7.2VDC（115VAC,60HZ adaptor provided）
