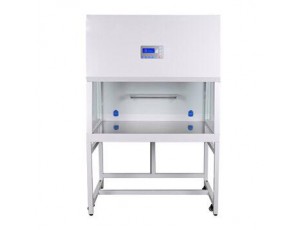

PCR Cabinet PCR1000
Price Upon Request
0

• LED display (LED display for PCR1000).

• UV sterilization system.

• HEPA filter efficiency 99.999% at 0.3μm.

• Interlock function:UV lamp only can be switched on when the front window is closed, ensuring operator safety.

• UV timer (0-90 minutes): When the setting time expires, the UV lamp automatically switches off in preparation for the next experiment.



Qty

Share

TECHNICAL PARAMETERS:

Model

PCR-800

PCR-1000

PCR-1200

PCR-1300

PCR-1500

External Size (W*D*H)

800*700

*1770mm

1000*705

*1770mm

1200*700

*1770mm

1300*700

*1770mm

1500*700

*1770mm

Internal Size (W*D*H)

700*595

*550mm

900*595

*560mm

1100*595

*550mm

1200*595

*550mm

1400*595

*550mm

Work Surface Height

750mm

Material

Main Body: Cold-rolled steel with anti-bacteria powder coating

Work Table: 304 stainless steel

Front & Side Windows

5mm toughened glass , anti-UV

Motorized

Manual

Motorized

Motorized

Motorized

Max Opening

300mm

320mm

300mm

300mm

300mm

Pre-Filter

Polyester fiber, Washable

HEPA Filter

99.999% efficiency at 0.3μm.

Airflow Velocity

0.3-0.5m/s, speed adjustable

Noise

≤65dB

UV Lamp

20W*1

20W*2

30W*1

30W*1

40W*1

Emission of 253.7 nanometers, with UV timer

Illumination Lamp

LED 8W*2

40W*1

LED 12W*2

Illumination

≥1000Lux

Shelf with IV bar

Stainless steel, 502*150*50mm (W*D*H)

caster

Universal caster with leveling feet

Consumption

400W

300W

600W

600W

600W

Waterproof Socket

Two, total load≤500W

Power Supply

AC 220V±10%, 50/60Hz;110V±10%,60Hz

Standard Accessory

UV lamp, Fluorescent lamp, Base stand, Waterproof socket*2, Shelf with IV bar

Gross Weight

130kg

150kg

170kg

180kg

200kg

Package Size (W*D*H)

950*930

*1370mm

1150*930

*1370mm

1350*930

*1370mm

1450*930

*1370mm

1650*930

*1370mm
