Phaos - Light Microscope - OptoNano Series
- LOGIN FOR MORE INFO

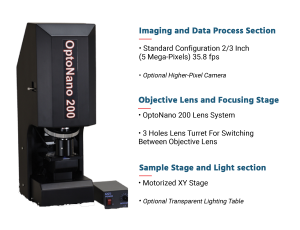

PHAOS - LIGHT MICROSCOPE - OptoNano SERIES
About Phaos Technology
Phaos Technology is an advanced optics technology manufacturer based in Singapore. Phaos strives to make nano-scopes at a fraction of the cost of expensive microscopes, and their in-house microscopy software provide users a convenient and easy to operate system. Their patented Optical Microsphere Nanoscopy (OMN) technology is able to resolve target features down to 137nm scale in visible light and ambient air observation, breaking the ~200nm Abbe’s resolution Limit and bridging a major gap between optical and electron microscopy.
Microscope - OptoNano Series Features
| Model | High Resolution | Super Resolution |
| Configuration | 100x objective lens | ON200 Lens System |
| Resolution | ~300nm | ~137nm |
| Magnification Reference | up to 3093x | up to 4639x |
| Field Of View (With Stitching) | 500 x 500 um | 50 x 50 um |

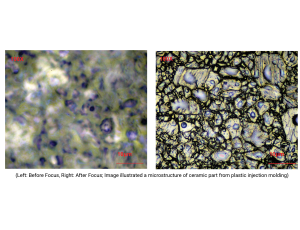

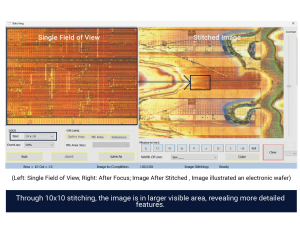

| Features Highlight | Autofocus, Fast image stitching, High Accuracy | Autofocus, Fast image stitching, High Accuracy |
Contact sales@mahachem.com for more information.
