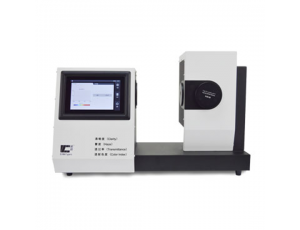

Color and Haze Meter CS-700

    (Login To View Price)
0
  • Used for color, haze, spectral transmittance and total transmittance measurement of transparent and translucent materials such as plastic sheets, films, glass, LCD panel, touch screen and others.
  • Can measure dozens of color parameters such as Lab, yellowness index, whiteness index, Gardner, Pt-Co / APHA / Hazen colors.
  • Conform to ASTM D1003 / D1044, ISO13468 / ISO14782, JIS K7105, JIS K7361, JIS K7163 and other international standards.
  • Provides A, C and D65 measurement light source selection, and 24 types of measurement light source for color measurement

Share

It is designed for color, haze, spectral transmittance and total transmittance measurement of transparent and translucent materials such as plastic sheets, films, glass, LCD panel and touch screen, etc.

Part 1.Instrument Introduction

1. Comprehensive Transmission Color Parameters

  • Color and haze meter CS-700 has comprehensive color parameters, which can measure dozens of color parameters such as Lab, yellowness index, whiteness index, Gardner, Pt-Co / APHA / Hazen colors.



2. Comply with ASTM and ISO standards

  • The clarity and haze meter CS-720 complies with both ASTM and ISO measurement standards. It can meet the following measurement standards ASTM D1003 / D1044, ISO13468 / ISO14782, JIS K7105, JIS K7361, JIS K7163 and other international standards.

3. Different Light Sources for Different Measurement Requirements

  • Color and haze meter CS-700 provides A, C and D65 measurement light source selection, and 24 types of measurement light source for color measurement.

4. Compensation Measurement to Make Test Result More Accurate

  • It can realize the compensation measurement of transmittance and provide more accurate transmittance test results.



5. Haze QC software as Standard Accessory

  • Provide powerful haze, color, and transmittance measurement and analysis software, which can operate on a computer to generate and print test reports.

6. Seven-inch Android Touch Screen for Better Testing Experience

  • Android operating system and touch screen for more convenient operation and better user experience

7. Open Sample Measurement AreaSample can be Measured Horizontally or Vertically

  • Open sample measurement area, which is no limit on sample size, you can perform horizontal or vertical measurement according to different samples.

Model

Color and Haze Meter CS-700

Light source

Haze / TransmittanceCIE-ACIE-CCIE-D65
Chromaticity indexACD50D55D65D75F1F2F3F4F5F6F7F8F9F10F11F12CMF, U30, DLF, NBF, TL83, TL84

Standards

ASTM D1003/D1044,ISO13468/ISO14782,JIS K 7105,JIS K 7361,JIS K 7136,GB/T 2410-08,CIE No.15,ISO 7724/1,ASTM E1164,DIN 5033 Teil7,JIS Z8722 Condition c standard

Parameters

Haze (HAZE),Transmittance (T),Spectral transmittance,Clarity(C%),

CIE Lab, LCh, CIE Luv, XYZ, Yxy, , Hunter Lab Munsell MI,CMYK, Whiteness WI(ASTM E313-00,ASTM E313-73CIE/ISOHunterTaube Berger Stensby),

Yellow Index YI(ASTM D1925ASTM E313-00ASTM E313-73),

Tint(ASTM E313-00)Heterochromatic index Milm,

APHAPt-Co(Index of platinum cobalt), Gardner, Color difference (ΔE*ab,ΔE*CH,ΔE*uv,ΔE*cmc(2:1),ΔE*cmc(1:1),ΔE*94,ΔE*00)

Measuring Range

0-100% (Haze, transmittance)

Spectral Response

CIE The spectrum functionY/V(λ)

Wavelength Range

400-700nm

Wavelength Interval

10nm

Geometry

0/d

Illumination Area and Aperture

16.5mm/21mm

Resolution

0.01 unit

Repeatability

haze10%repeatability≤0.05;

haze≥10%repeatability≤0.1%;

Transmittance≤0.1%

Sample Size

thickness≤145mm

Display

Inches Touch Screen

Data Storage

20,000 values

Interface

USB

Power

110V / 220V / 240V

Working Temperature

0~45Relative humidity 80% or below (at 35 ° C), no condensation

Storage Temperature

-25  ~ 55 , relative humidity 80% or below (at 35 ), no condensation

Instrument Size

598mmX247mmX366mm

(length X width X height)

Standard

PC management software (Color QC)

Optional

Measuring Fixture, Haze StandardsTransmittance Standards, 5mm / 7mm / 10mm Apertures, 40 * 10 Glass Cell
