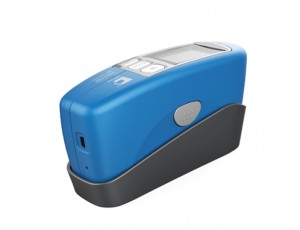

Precise Three Angle Gloss Meter CS-380

Let us combat Covid-19 together!

Products

Lab and Industrial Solutions Lab and Industrial Solutions
Precise Three Angle Gloss Meter CS-380
Price Upon Request
0

•Measure the gloss on a test surface at 3 different angle: 20°, 60°, 85°.

•mainly used in the surface gloss measurement for paint, plastic, metal, ceramics, building materials and others.

•Conform to the DIN 67530, ISO 2813, ASTM D 523, JIS Z8741, BS 3900 Part D5, JJG696 standards and others.

Qty

Share

Product Introduction

1. High Precision

  • Our gloss meter adopts sensor from Japan, and processor chip from the US to ensure high precision of the measured value.
  • It conforms to JJG 696 standard for first-class gloss meters. Every instrument has a metrology accreditation certificate from State Key Laboratory of modern metrology and testing instruments and Engineering centre of the Ministry of Education in China.

2. Super Stability (Patent Right No.: ZL2012201796876)

  • Every gloss meter made by us has done the following test:
    • 412 calibration tests;
    • 43200 stability tests;
    • 110 hours of accelerated aging test;
    • 17000 vibration test

3. Comfortable Grab Feeling

  • The shell is made by Dow Corning TiSLV material, a desirable elastic material. It is resistant to UV and bacteria and does not cause allergy. This design is for better user experience

4. Large Battery Capacity

  • We fully utilized every space of the device and specially custom made advanced high-density lithium battery in 3000mAH, which ensures continuous testing for 54300 times.

Model

CS-380

Test Angle

20°,60°,85°

Test light spot(mm)

20°:10*10

60°:9*15

85°:5*38

Test range

20°:0-2000GU

60°:0-1000GU

85°:0-160GU

Resolution

0.1GU

Test modes

Simple mode, standard mode and sample testing mode

Repeatability

0-100GU:0.2GU

100-2000GU:0.2%GU

Accuracy

Conform to JJG 696 standard for first class gloss meter

Test time

Less than 1s

Data storage

100 standard samples; 10000 test samples

Size(mm)

165*51*77 (L*W*H)

Weight

About 400g

Language

Chinese and English

Battery capacity

3000mAh lithium battery

Port

USB, Bluetooth (optional)

Upper-PC Software

Include

Working Temperature

0-40

Working Humidity

<85%, no condensation

Accessories

5V/2A charger, USB cable, operating manual, software CD, calibration boards, metrology accreditation certification
